The Breathing Wall
Services
Installation Design
Experience Design
Client
Forest Design Labs
Location
The Design Village
Year
2024
Description

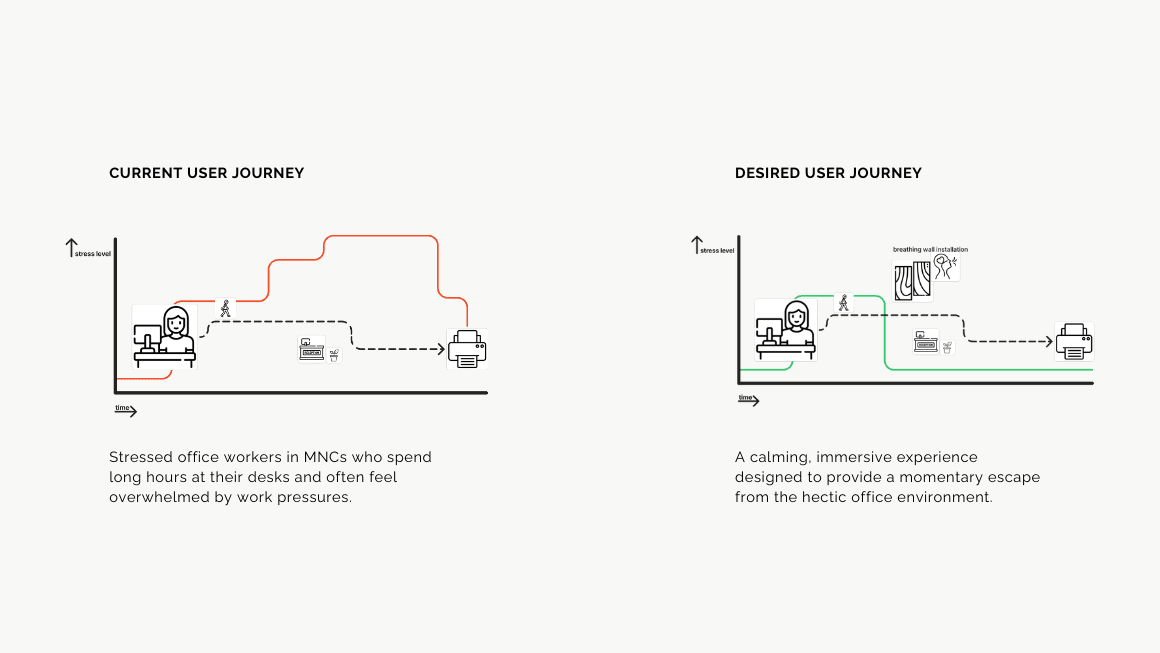

FOCUS: Mitigating office stress by bringing in nature-like sensory stimulation to rapid workplace passages.

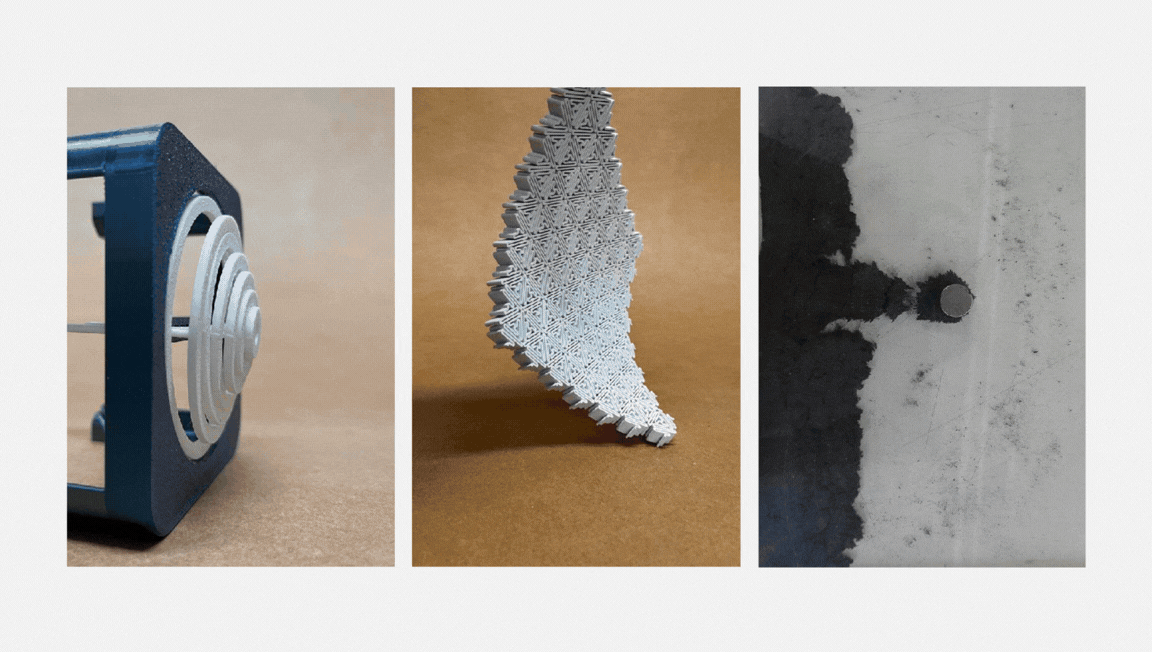

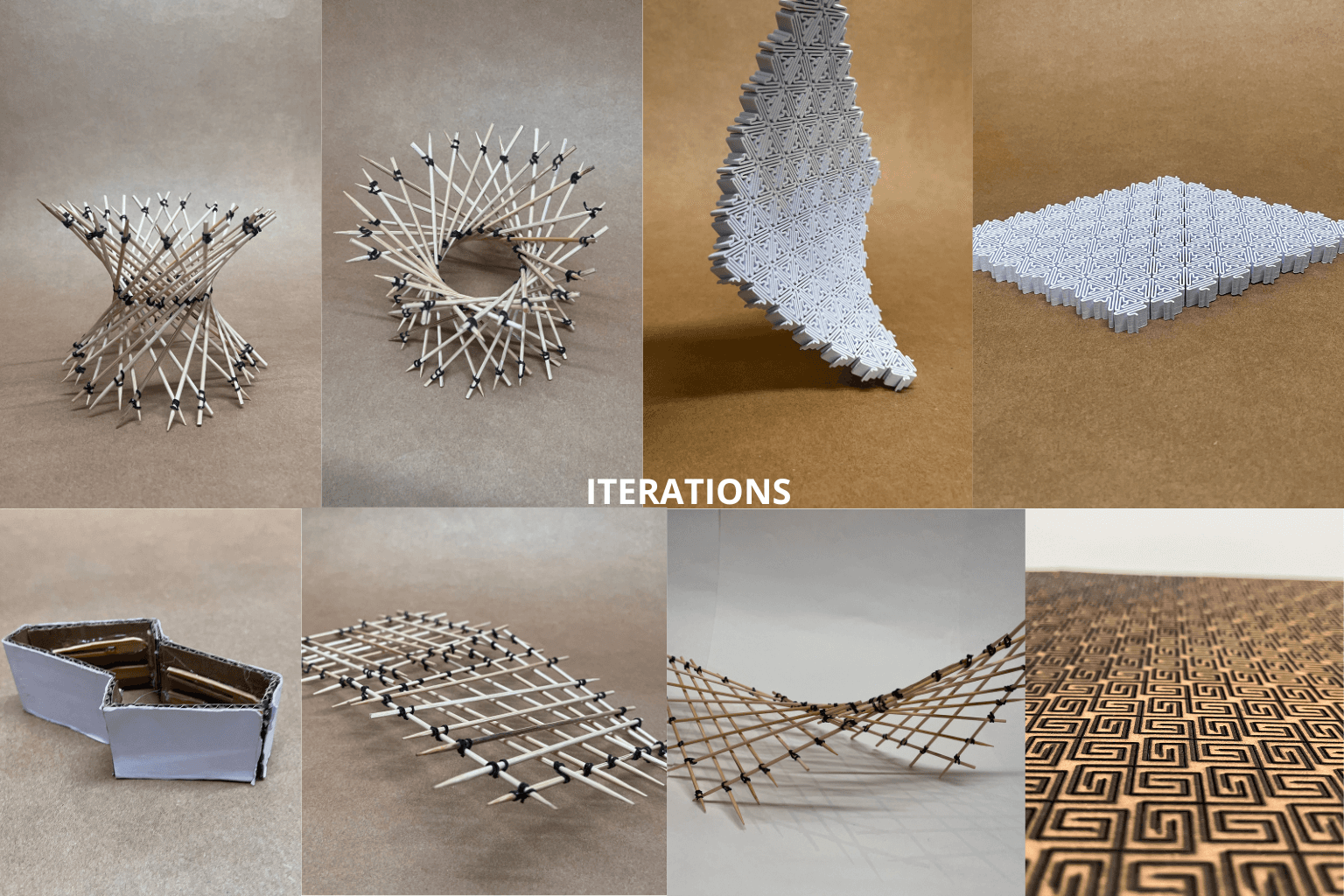

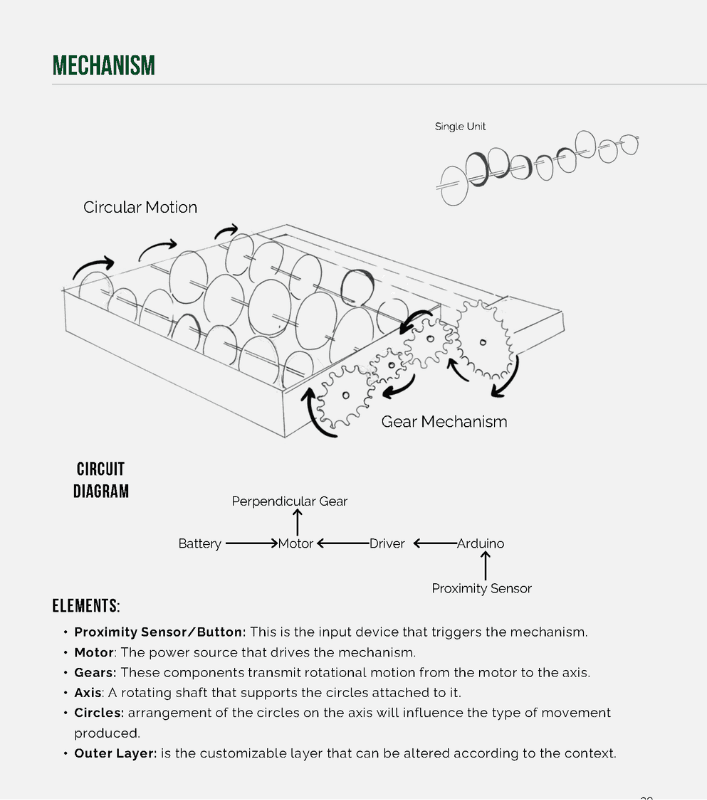

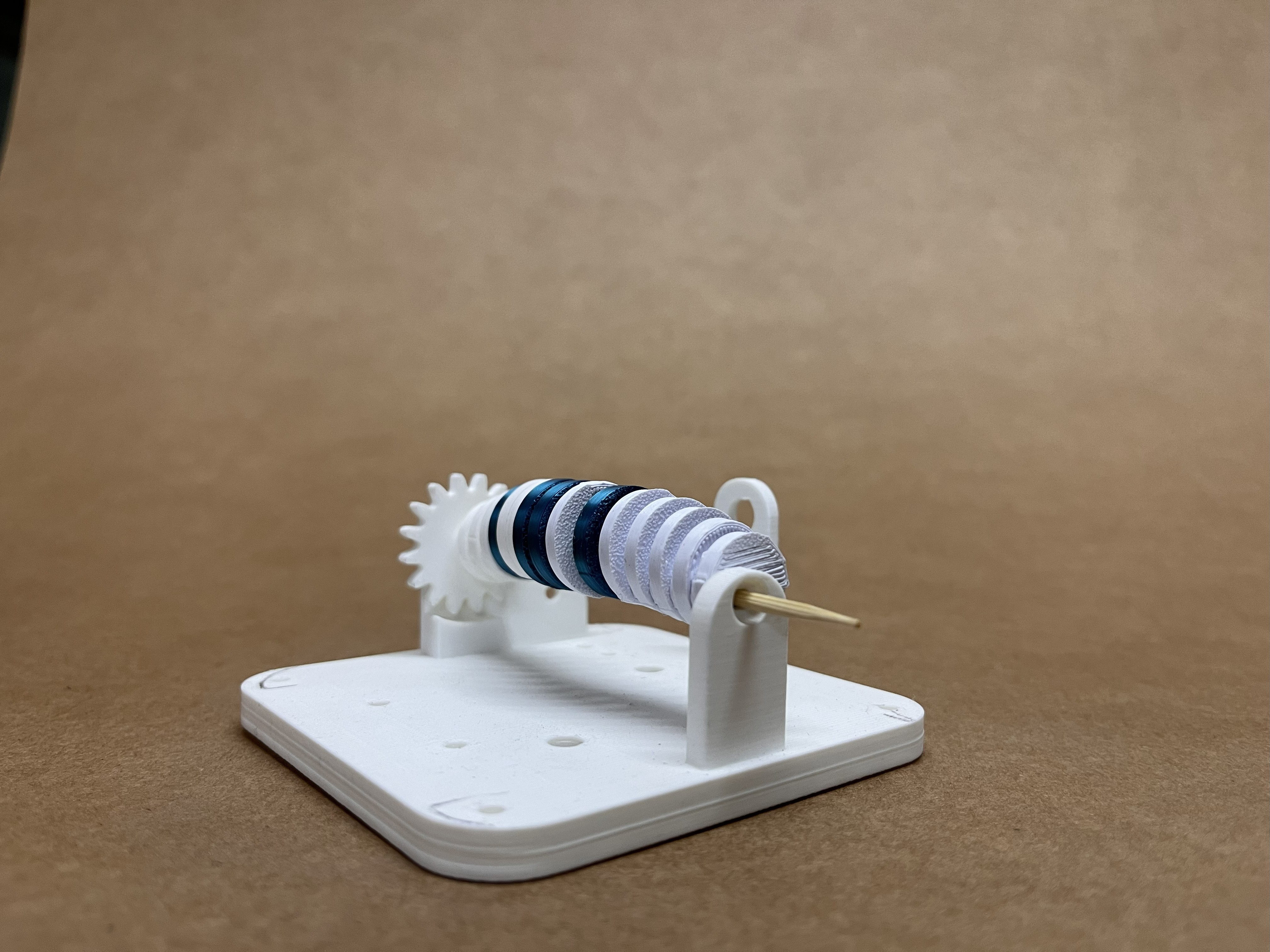

APPROACH: An Arduino-powered mechanical kinetic-wall system featuring proximity sensing, which drives the movement via a gear system, promoting subtle wave motions based on user presence. Material explorations included auxetic structures, kinetic geometries, and surface layers.
CONCEPT: Solitude in Connectedness-evoking the forest's balance between individual stillness and collective life. The wall "breathes" when people pass by, serving as a digital detox and reminding one to pause, observe, and breathe.
OUTCOME: A modular, scalable installation prototype, translating motion into an organic, rippling motion-forming kinetic rhythm in the built environment. The breathing gesture was captivating, yet non-disruptive. The project did a great job of proving that mechanical interactions have the capability to inject emotional well-being and slow moments into demanding workplaces. The work continues with mass production and enhanced responsiveness in terms of motion.
Info
Develop and create an immersive installation on the theme of 'forest' incorporating multisensory interactions as an exemplary pitch to festivals, corporate spaces, and events furthering the ethos and practice of Forest Design Labs.
